LED Display Modules

imgSander LED is the best diode manufacturer I have ever worked with. Sure, their diodes are great, but at the end of the day it's the people at Sander that make me stay. The Sander team is professional, they do what they say, and the company always stands behind theproduct. I have worked with Sander as an OEM developer for years, and the trust I have in them invaluable to my business..

- Chris Ma, Advantage LED

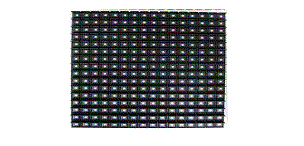

SDM-P10RGB1616-OBAQ

port

SDM-P10RGB1616-OBAQ is the 16x16 pixel full color LED module made by 3-in-1 SMD LED, with 1/4 Duty Dynamic Driving method.

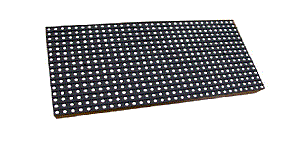

SDM-P10RGB3216-OLAS

port

SDM-P10RGB3216-OLAS is a 32x16 pixel full color module made by 3-in-1 SMD LED, with Static Driving. Best fit to use as video screen or message board at indoor environment, without color distribution.

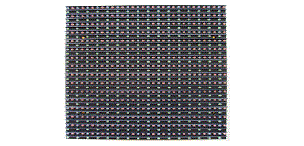

SDM-P12RGB1616-OBSS

port

SDM-P12RGB1616-OBSS is a 16×16 full color Module made by Red, Green, Blue LAMP LED, design for wide range of applications such as video screens, graphic, alphabet, numeric, symbol and VMS without color distribution.

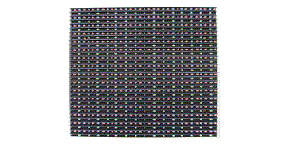

SDM-P12RGB1616-OFSS

port

SDM-P12RGB1616-OFSS is a 16×16 full color Module made by Red, Green, Blue LAMP LED, design for wide range of applications such as video screens, graphic, alphabet, numeric, symbol and VMS without color distribution.

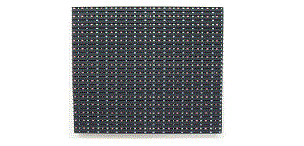

SDM-P16RGB1616-OBSS

port

SDM-P16RGB1616-OBSS is a 16×16 full color Module made by Red, Green, Blue LAMP LED, design for wide range of applications such as video screens, graphic, alphabet, numeric, symbol and VMS without color distribution.

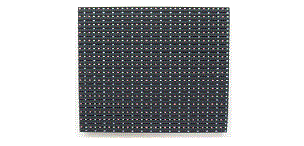

SDM-P16RGB1616-OFSS

port

SDM-P16RGB1616-OFSS is a 16×16 full color Module made by Red, Green, Blue, LAMP LED, design for wide range of applications such as video screens, graphic, alphabet, numeric, symbol and VMS without color distribution.

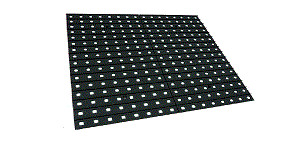

SDM-P16RGB1616-OLAS

port

SDM-P16RGB1616-OLAS is a 16×16 full color Module mad by 3-in-1 SMD LED, available for wide range of outdoor applications such as video screens, graphic, alphabet, numeric, symbol and VMS without color distribution.

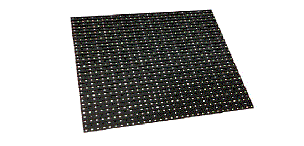

SDM-P20RGB1616-OLSS

port

SDM-P20RGB1616-OLSS is a 16×16 full color Module made by Red, Green, Blue, LAMP LED, design for wide range of applications such as video screens, graphic, symbol and VMS without color distribution.

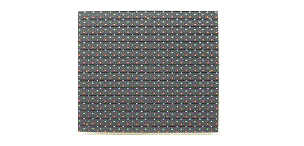

SDM-P20RGB1616-OLVS

port

SDM-P20RGB1616-OLVS is a 16×16 full color Module made by Red, Green, Blue, LAMP LED, design for wide range of applications such as video screens, graphic, symbol and VMS without color distribution.

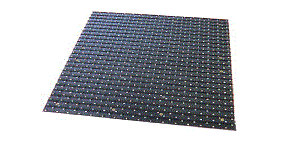

SDM-P25RGB1616-OFVS

port

SDM-P25RGB1616-OFVS is combine 2pcs of 16×8 full color Module made by Red, Green, Blue, LAMP LED together, design for wide range of applications such as video screens, graphic, and VMS without color distribution.





型號 類型 間距 模組尺寸 模組像素 視角 重量 (Typ.) 規格下載
SDM-P10RGB1616-OBAQ LED 10mm 160mm x 160mm 256 pixel 水平軸 120 度 800g
垂直軸 120 度
SDM-P10RGB3216-OLAS SMD 10mm 320mm x 160mm 512 pixel 水平軸 120 度 1000g
垂直軸 120 度
SDM-P12RGB1616-OBSS LED 12.5mm 199.6mm x 199.6mm 256 pixel 水平軸 110 度 1000g
垂直軸   40 度
SDM-P12RGB1616-OFSS LED 12.5mm 199.6mm x 199.6mm 256 pixel 水平軸 110 度 1000g
垂直軸   40 度
SDM-P16RGB1616-OBSS LED 16mm 256mm x 256mm 256 pixel 水平軸 110 度 1300g
垂直軸   40 度
SDM-P16RGB1616-OFSS LED 16mm 256mm x 256mm 256 pixel 水平軸 110 度 1300g
垂直軸   40 度
SDM-P16RGB1616-OLAS SMD 16mm 256mm x 256mm 256 pixel 水平軸 120 度 1200g
垂直軸 120 度
SDM-P20ZGB1616-OLSS LED 20mm 320mm x 320mm 256 pixel 水平軸 110 度 1600g
垂直軸   40 度
SDM-P20RGB1616-OLVS LED 20mm 320mm x 320mm 256 pixel 水平軸 110 度 1600g
垂直軸   40 度
SDM-P25RGB1616-OFVS LED 25mm 400mm x 400mm 256 pixel 水平軸 110 度 2000g
垂直軸   40 度
